PMMA Jacket Single Optic Fiber with end glow for lighting EOF-1.0 manufacturer from China HALANCE TECHNOLOGY CO.,LTD

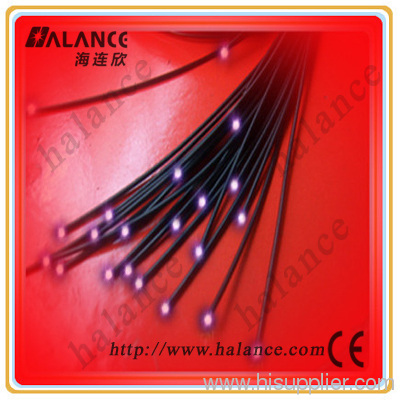

PMMA Jacket Single Optic Fiber with end glow for lighting

Place of Origin:

Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: EOF-1.0

Packing: Standard package,as you req...

Brand Name: HALANCE

Lamp Power(W): 45

Working Temperature(℃): -50 - +70

IP Rating: IP65

Low attenuation(Db/km): lower than 200dB/km

Application: transmit light

Production Capacity: 500 Set /Sets per month

Delivery Date: 3-15 working days

Voltage: 110V/60Hz, 220V/50Hz

Color Temperature(CCT): Warm White

Lamp Body Material: PVC

Certification: CE

Minimum bend radius: 30mm

fibre optic end glow
*Inner Dia(mm): 1.0
*Outer Dia(mm): 2.2
*Jacket materials: black
*Length/roll(M):1000

End glow, PMMA plastic fiber optic cable is a lighting product which is used for ceiling star and pool lighting, industry control, star curtain lighting.

And the technical specifications:

*Model: EOF-1.0

*Inner Dia(mm): 1.0

*Outer Dia(mm): 2.2

*Length/roll(M): 1000

*Cover Material: Black

Feature:

*Lower attenuation: lower than 220

*Flexible and durable

*Waterproof and no heat

*low weight, high resist flutter

*Low specific gravity

Specification:

Item No.	Inner Dia(mm)	Outer Dia(mm)	Attenuation(dB/KM)	Numerical aperture	Operation Temp°C	Length/roll(M)	Cover Material
EOF-0.75	0.75	2	≤200	0.5	-50~+70	1000	Black
EOF-1.0	1.0	2.2	≤200	0.5	-50~+70	1000	Black
EOF-1.5	1.5	3.5	≤200	0.5	-50~+70	700	Black
EOF-2.0	2.0	4.5	≤200	0.5	-50~+70	500	Black
EOF-2.5	2.5	4.5	≤200	0.5	-50~+70	500	Black
EOF-3.0	3.0	5.0	≤200	0.5	-50~+70	300	Black
